PS4 RetailKit Part 3: DECI Daemon
What Is the DECI Daemon?
Now that we've explored the debugging infrastructure, it's time to look at the other half of the equation: the DECI Daemon. DECI is the bridge between the PS4 and Sony’s debugging tools, it handles all communication with the host machine over a network connection (Though also possible through a USB device.) and powers tools like Neighborhood and Sony’s debugger.
The DECI Daemon acts as a remote control layer for developers, enabling critical functionality like process control, console output, screenshots, remote control and even system software updates. Its capabilities vary based on the current System Mode:
Release Mode (Retail): Not Loaded, simulates final consumer hardware; DECI is present but not loaded.
Development Mode: Fully enabled, supports complete debugging and inspection features.
Assist Mode: A hybrid for profiling purposes; allows limited introspection but blocks direct debugging access.
This mode configuration is enforced through software checks where the mode can be changed in the Debug Settings and applied after a reboot.
Understanding how the DECI Daemon fits into the broader debug stack is essential for any attempt to restore or repurpose Sony’s official tooling, especially on Retail hardware.
Tracing How the DECI Daemon Loads
With a general understanding of DECI’s role and modes, I wanted to identify exactly how the system loads the DECI Daemon on a DevKit/TestKit and more importantly, how that differs on Retail units.
My go to approach for something like this is static analysis. Since I already know the boot order on PS4 roughly follows:
Kernel → Syscore Mini → Syscore → Shellcore
I could see in these boot logs the PID for DECI Daemon was +1 of the SceShellCore PID.
<118>[SceShellCore] PID 0x24 FMEM 17.1/ 144.3 SceShellCore <118>[SceShellCore] PID 0x25 FMEM 12.5/ 95.3 decid.elf
In addition to this I could see that some DECI start up logs would appear after SceShellCore started and after SceSysCore started. With this info it is reasonable to believe that either SceShellCore or SceSysCore is responsible for loading the DECI Daemon.
Finding the Launch Point
I started with a basic string search for “DECI” in the Retail versions of these binaries and I would quickly find some strings that quickly revealed an interesting path:
That file is the DECI Daemon binary, and as expected, it doesn’t exist on Retail systems, it's stripped from the filesystem. However, sourcing it for analysis wasn’t difficult given the extensive amount of leaked development SDK’s and hardware.
Using cross references on that string, I landed on the following function:
This function tells us everything we need to know:
DECI is expected at
/system/sys/decid.elfIt's spawned like any other system process
Logging confirms both success and failure states
The binary may be gone on Retail systems, but the launch logic is still there.
Who Calls SpawnDecidProcess?
If I follow the cross references up from this method we arrive at an entry point for a thread. This shows us that this thread is spawned early in SceSysCore’s start up procedure just after SceShellCore is spawned.
This is the thread entry for "SceSysCore:DevPort", It's responsible for checking what kind of system we’re on (DevKit, TestKit, Retail) and conditionally launching DECI based on that. This thread is responsible for a few other things like connecting to the DEVUSB or setting and checking the networking environment for the DEVLAN.
This confirms:
Retail consoles do not pass the checks to launch decid.elf
The logic is still baked into the system even when unused.
Launch and environment checks are happening in the SceSyscore layer.
Patching SceSysCore: Manually Spawning decid.elf
With the SpawnDecidProcess() function mapped out, my next thought was:
What if I could just ignore the logic in DevPortThread, copy the decid.elf from the DevKit and trigger the launch myself?
I figured that if I would just hook the calls to sceKernelCheckDipsw(), sceKernelIsDevKit(), sceKernelIsTestKit(), sceKernelIsAssistMode(), sceKernelIsGenuineN() to replicate the environment that will ensure the DECI Daemon get launched. I could then just spin up a thread and point it at the entry point in SceSysCore for "SceSysCore:DevPort" which should spawn the DECI Daemon process.
First Roadblock: Decryption Failure
This would be successful in getting SceSysCore to attempt to launch the DECI Daemon process but it would fail with the following error…
Retail systems can’t decrypt the decid.elf binary. It’s not exactly clear to me why just this binary the system will refuse to decrypt it but the code ensuring this appeared to be within SAMU. This was an unexpected outcome since my Retail Console could decrypt other Devkit/Testkit binaries.
This was fairly trivial to overcome:
I decrypted the original decid.elf using a DevKit
Faked signed the elf for use with HEN.
With that in place, SceSysCore would be successful in launching the DECI Daemon process…
...Or so I thought.
Second Roadblock: Missing libraries
Despite launching, decid.elf exited with the following error:
This should be a simple fix as this is just a library missing from the retail system, So I took the time to take note and copy over every library that is not present on the Retail from a Devkit filesystem dump.
All of the libraries that aren’t present in /system/priv/lib on Retails are as follows:
- libctrlp.sprx
- libdbgp.sprx
- libdcip.sprx
- libdrfp.sprx
- libdtracep.sprx
- libfuse.sprx
- libgtcp.sprx
- libpgcmp.sprx
- librdrfp.sprx
- libSceAppChecker.sprx
- libSceCtrlp.sprx
- libSceDevUsb.sprx
- libSceGnmDriver_sys_padebug.sprx
- libSceOttvCapture_sys.sprx
- libScePlayGoDev.sprx
- libtmcp.sprx
- libtsmp.sprx
- libttyp.sprx
- libulpcommon.sprx
- libsdbgp.sprx
I spent some time at this point also comparing the other files on the system and found some other config files found at /system/priv/settings as follows:
- sdk_eventlog_def_for_ext.xml
- sdk_eventlog_def_for_int.xml
- setting_def_for_ext.xml
- setting_def_for_extdev.xml
- setting_def_for_int.xml
- setting_def_for_intdev.xml
- ulp_load_list.conf
- ulp_load_list_assist_mode.conf
- ulp_load_list_release_mode.conf
- ulp_load_list_update.conf
I wasn’t sure if all of these were needed but I figured it would help to ensure they are present on my retail in the event they are important.
Third Roadblock: Internal Environment Checks
After adding the missing files from the dev environments DECI Daemon would exit with the following new error:
I had side stepped the checks in Syscore and I figured this may come back to bite us, if we dig into the code the decid.elf runs at start up we find the following environment checks:
Wow! There is a lot to unpack here lets break down the code a bit to make some better sense of it…
This is a bit better! In order for DECI to believe its in the correct environment we need the following to be true:
Our console is not a CEX (Retail).
Our Console is not a Testkit AND Dip switch 1 is off, OR Development Mode is Enabled, OR Assist Mode is Enabled.
Our Console is not a Testkit AND Dip switch 1 is off, OR Development Mode is Disabled.
This is easier to explain if we jump a bit ahead in the story and have the knowledge that Dip Switch 1 is actually Disable DEVLAN. This makes this environment check make sense because only DevKits can disable their DEVLAN because Testkits do not have a DEVLAN port.
So what it should read like is the following:
Our console is not a CEX (Retail).
Our Console is not a Testkit AND DEVLAN is Enabled, OR Development Mode is Enabled, OR Assist Mode is Enabled.
Our Console is not a Testkit AND DEVLAN is Enabled, OR Development Mode is Disabled.
This all will be important for the next road block… For now we will just patch the branch in decid.elf.
We can bypass this check easily by just taking the location of the branch we want to go which is loc_51F4 and subtracting that location from the location we will write our branch at which is 0x51A2 then subtract the size of the instruction we are going to use. In our case we are using a simple jump instruction which happens to be just 2 bytes, This leaves us with 0x7D so the instruction byte code we must write to 0x51A2 is EB 7D to bypass these environment checks.
At this point I was hoping at very least to get an error but I waited and nothing would happen… decid.elf was just hung… So we must dig deeper into the the start up code to figure out where the hang is occurring.
Fourth Roadblock: DEVLAN
Solving this issue would be easier if we knew exactly where decid.elf was hung using a debugger but I had to figure this out the hard way. I decided to use my strong static analysis skills to manually walk the startup logic in search of a method that may block execution and I found just that!

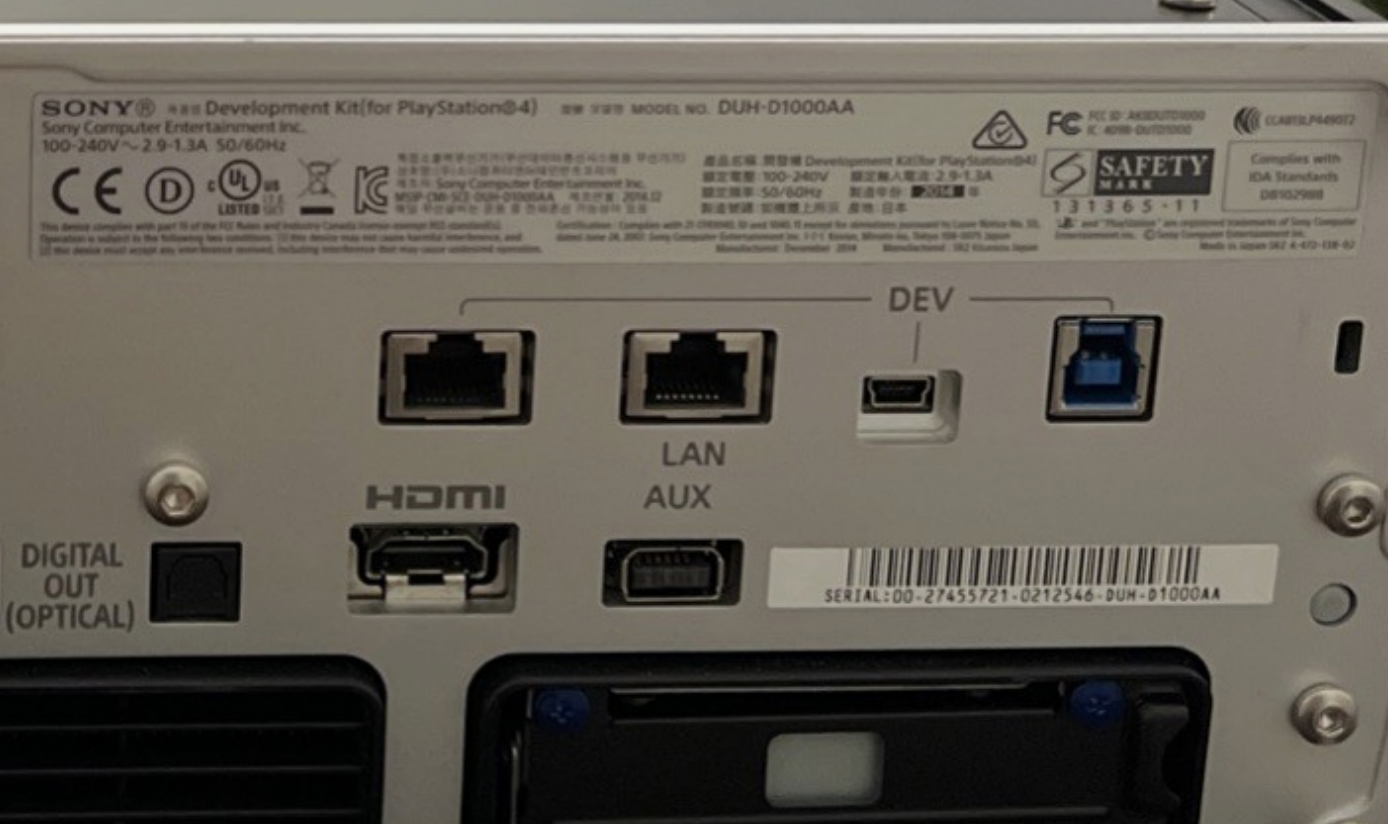

This code seems to be where decid.elf is sorting out which communication method is selected then it will hang here until that method is online. The options available would be one of following DEVLAN, DEVUSB or ETH0. These options would make sense since Devkits have the ability to use the DEVLAN or DEVUSB but TestKits only have the ETH0 available to them. So we need to dig into these import calls to figure out how to force DECI to use our ETH0 for its communications.
That search brings us to the method fB6YPEgMPtk_A_B this method (which is named by its raw NID since we do not know its proper symbol name) is imported from the library libulpcommon.srpx.
We can see the conditions for each of the three scenarios mentioned above. We end up following down the Devkit path because we are on a Retail console so sceKernelIsTestKit() returns false and the dip switch(1) for disable DEVLAN will be set to false.
This explains why DECI is hanging, it is in fact waiting for the DEVLAN to switch its network state.
Dip Switch patches
I decided to take a look at the userland library libSceDipsw.sprx and I found that each of the methods would use /dev/dipsw and make IOCTL requests. I was most interested in sceKernelCheckDipsw() since it is used in the check for sceKernelIsDevelopmentMode() & sceKernelIsAssistMode().
This method is very simple it will pass in the dipIndex we want to check then the Kernel will write out to the same struct the dipValue. So I came up with a simple hook so we can easily change these dipValues on the fly while testing our theories.
By setting dip switch 2 to false it will ensure that IsAssistMode is always false and setting dip switch 0 to true it will ensure that IsDevelopmentMode will always be true. I also set dip switch 1 to true to disable the DEVLAN and I also set 102 to true (I speculate this is Disable DEVUSB but it is not clear). With these values set in the dip switches the method fB6YPEgMPtk_A_B should return 1(ETH0) so that DECI will do its communications over the wired ethernet adapter.
I also at this time took the liberty to set our product code to that of a Devkit (82 02) and set the flags for enabling UL/SL debugger (Userland/System Level debugger). The offsets shown are for the 9.00 Kernel.
Success!?
Launching DECI again after setting our new patches and hooks in the Kernel and we see the logs we have been hoping for!
DECI has launched successfully!!
There is some errors that are present in the logs but I decided to check if Neighborhood can detect and communicate with my console…
Neighborhood does in fact communicate with our Retail console and it is even asking us to activate!
Conclusion
Getting the DECI Daemon to run on a Retail console turned out to be a layered but relatively straightforward puzzle. Each obstacle revealed just how deeply DECI is woven into the system, and how all of its supporting logic remains present in the retail binaries. By applying a few targeted patches, I was able to bypass the dormant environment checks and watch the DECI Daemon finally launch.
The real breakthrough wasn’t simply seeing DECI start, it was demonstrating that the Retail binaries still contains everything needed to bootstrap it. This confirms that Sony’s debug infrastructure is universal across PS4 hardware, and that the tight coupling of DECI to system components makes it hard to fully disable for production or at the very least a clear choice was made to limit what is removed. From a security standpoint, this raises questions about attack surface design, as these latent capabilities could have been minimized by removing them entirely on consumer hardware.
With DECI alive and Neighborhood recognizing the console, this proves that a Retail console can be coerced into DevKit like behavior. While errors and quirks remain, this milestone shows that bridging the Retail/DevKit divide isn’t theoretical, it’s entirely practical and demonstrable.
